3 S VACTEC LLP

SSPG-100 is our standard tool for measuring the minority carrier diffusion length for thin film semicondconductor materials

• The SSPG-100 has a substrate holder exposed to air and there is no heating
• The SSPG-100 is mainly used for inorganic materials such as silicon based thin films (a-Si, µc-Si, poly-Si) or any other materials (a-SiGe, III-V, ...)

Download Datasheet

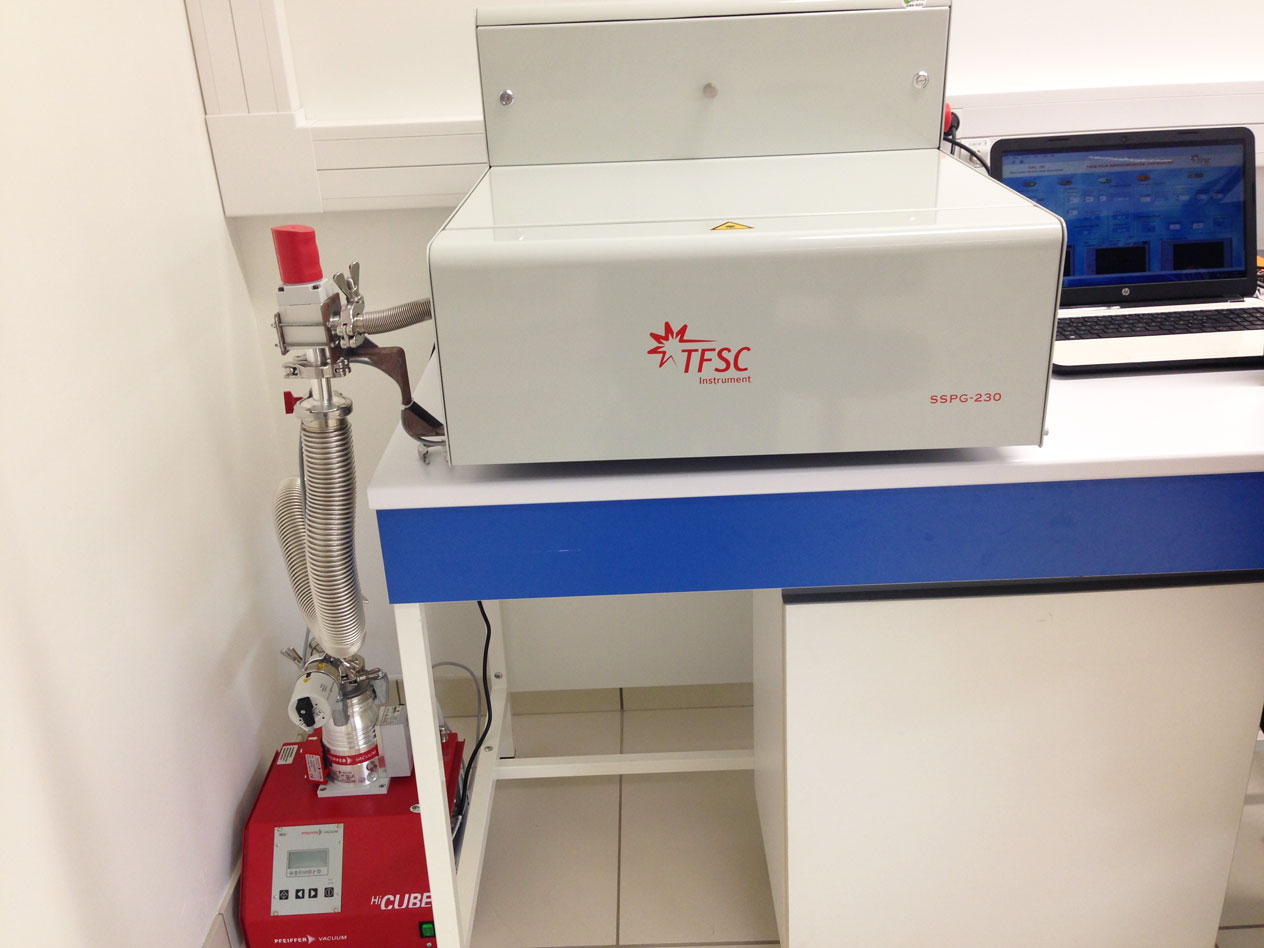

SSPG-230 is more suitable for organic semiconductors and to perovskite materials

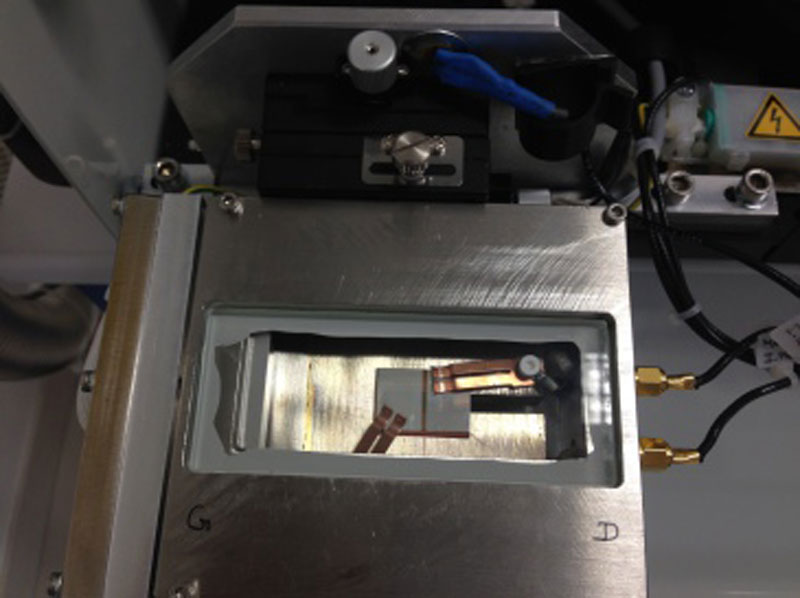

• The SSPG-230 has a substrate holder sealed in a separate chamber and can be heated up to 200 °C
• The substrate chamber can be either pumped down or filled with inert gas
• The SSPG-230 has been applied to BHJ materials such as (P3HT:PCBM) , etc and to perovskite

Download Brochure

QUESA-1200 Download Datasheet

QUESA is suitable for measuring the quantum efficiency of PV solar cells and photo-dectors.

Features:

• Measuring small, large & medium area
• Compact & flexible system
• Based on stable monochromatic LEDs
• Work in AC & DC modes
• Combination of EQE & I-V
• Fast calibration and measurement <30 s
• Flexible bias light : S/W selectable
• No optical adjustment
• Stable measurement
• Compatible with Glovebox

Fotocon Download Datasheet

Features:

• Measurement of materiel conductivity under illumination and under dark conditions
• The substrate holder can be under vacuum and is temperature controled. It can be heated up to 200 °C
• SSPC measurement can be performed to extract parmeters such as photoconductvity and activation energy of the thin semiconductor material.
